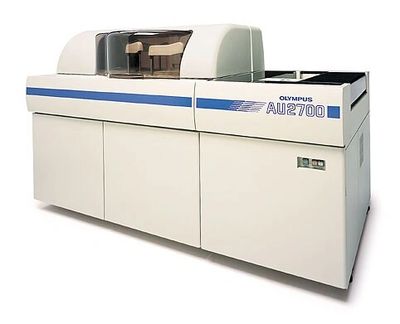

BECKMAN COULTER AU 2700

---

(1) Method

• Specifications Discrete,

Double line, multi-test,

Patient-oriented

(2) Composition

• Specifications

Analyzer, sampler, data processor, printer, option (ISE electrolyte measuring unit)

• Remarks

The data processor is a personal computer.

(3) Sample types

• Specifications

Serum, Urine, (Other)

(4) Number of simultaneous analysis items

• Specifications

Item selection input: Max. 48 items

(max. 51 items when the electrolyte measuring unit is installed)

• Remarks

Number of reagent bottles which can be set: 48 bottles can be set for first reagent and second reagent (at the time of use of 60, 30, 15 ml bottles)

(5) Processing capacity

• Specifications

Max. 1600 tests/hour; max. 2134 tests/hour with ISE electrolyte measuring unit

• Remarks

* With two items per sample and continuous order, the processing time is 800 samples/hour.

* With eight items per sample, including ISE and continuous order, the processing time is 267 samples/hour.

(6) Analysis method

• Specifications

1. End point

2. Rate method

3. Fixed method

4. * Ion electrode (ISE)

• Remarks

In regard to the analysis methods 1 to 3 on “Specifications”:

1) Reagent blanking balancemethod

2) Method without reagent blanking balance

3) Sample blanking balance method Self-blanking method (same cuvette)

Serum blanking method (separate cuvette)

* ISE is an option.

(7) Reaction mixture volume

• Specifications

120l to 430l

(8) Reaction time

• Specifications

Max. 8 min and 20 sec

Remarks

Photometry point, P0 to P27

(9) Reaction temperature

• Specifications 37C

• Remarks

Mixture temperature accuracy: 0.3

(10) Items which can be analyzed

• Specifications

1. Biochemical tests

Protein, enzymes, nitrogen compounds, sugar, lipids, electrolytes, minute quantities of metals in organisms, pigments in organisms, drugs

2. Immunological tests

Immunoglobulin, complements, plasma protein, tumor-related antigens

3. Serum information

4. ISE (option)

• Remarks

1. TP / ALB / TTT / ZTT / CK / AST / ALT / LDH / ALP / CHE / LAP /AMY / CRE / UA / UN / GUL /

Fructosamine / sialic acid / TG / NEFA / CHO /HDL-C / Bile acid / apoprotein / Mg / Ca / FE / UIBC / T-BIL / D-BIL / TMD

2. IgG / IgA / IgG C3 / C4

RF / CRP / CEA / AFP

3. Lipemia / Icteros / Hemolysis

4. Na / K / CI

(11) Serum information

• Specifications

Measuring of the degree of Lipemia, Icteros, Hemolysis and graded index indication are possible.

• Remarks

The judgment level for the graded indication can be set.
